ISUZU Автобетоносмесители 12m3
Shantui Janeoo Machinery Co., Ltd (Другой город)
Страна производитель:
Китай
Фирма производитель:
Shantui janeoo
Скидки посетителям портала:
Shantui Janeoo Machinery Co., Ltd
Условия оплаты:
TT
Условия доставки:
FOB CIF
Срок актуальности:
до 02.11.2026
Описание

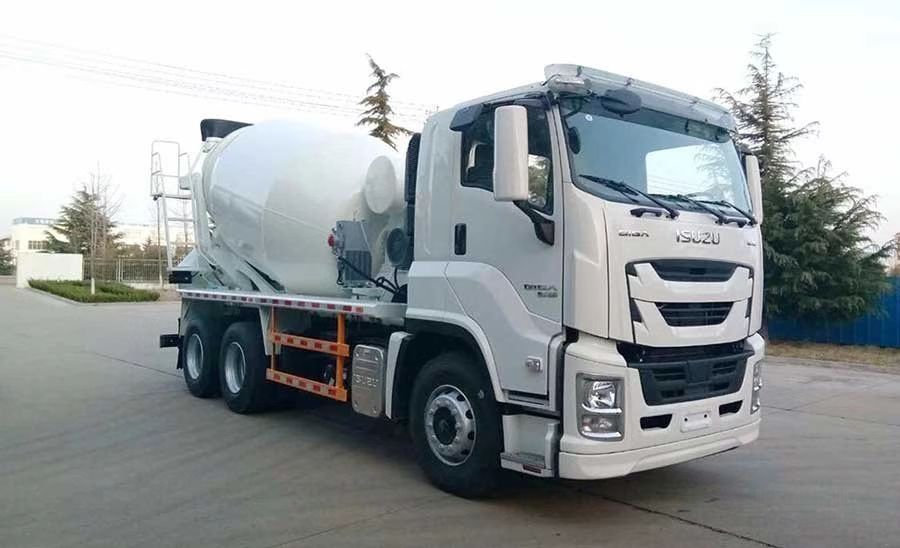

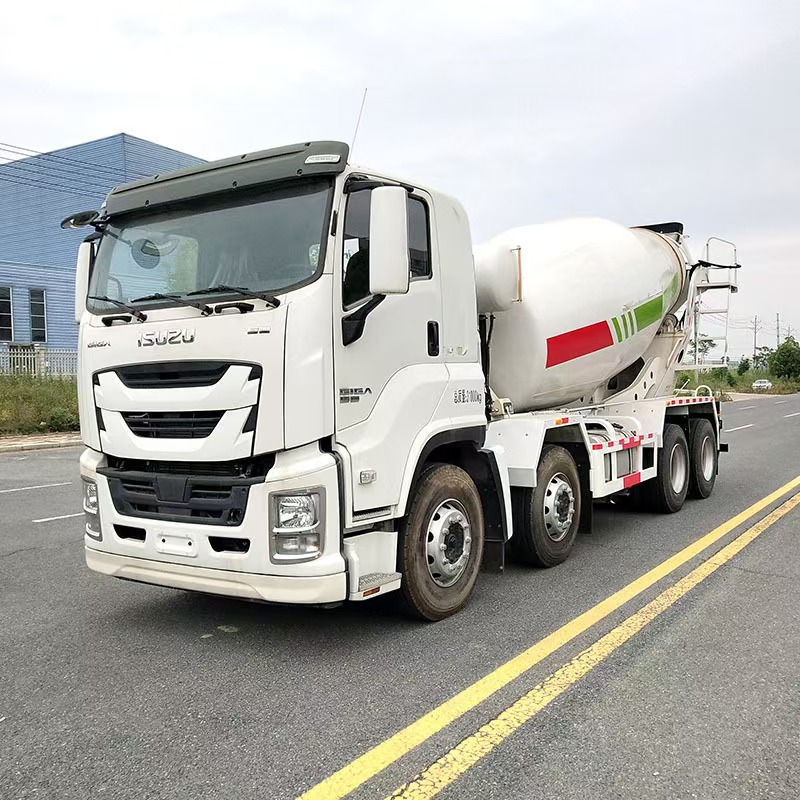

Предлагаю ISUZU Автобетоносмесители 12m3
|
Empty weight（kg） |
14200 |
||
|
Rated carrying capacity（kg） |
15770 |
||
|
Total weight （kg） |
31000 |
||
|
External size |
Length （mm） |
10210 |
|
|
Width （mm） |
2520 |
||
|
Height（mm） |
4000 |
||
|
Effective volume of horizontal pavement |
13m³ |
||
|
Technical data |
Input speed m3/min |
>5 |
|
|
Out speed m3/min |
>3 |
||
|
Discharge residual rate % |
<0.5 |
||
|
（Collapsbillity）mm |
40~210 |
||
|
Speed range of drum turning r/min |
0~14 |
||
|
Approach angle/departure angle |
19º/16° |
||
|
Reducer |
PMP |
||
|
Hydraulic pump/ Motor |
Rexroth |
||
|
Hydraulic loop |
Closed loop |
||
|
Water supply |
Water tanker |
400 L |
|
|
整车性能及参数 |
Axis distance mm |
1850+2980+1370 |
|
|
Axial load distribution kg |
6500/6500/18000 |
||
|
Maxspeed ）km/h |
82 |
||
|
经Economical speed km/h |
50 |
||
|
Min turning diameter）m |
21 |
||
|
Minimum Clearance |
265 mm |
||
|
clutch |
Pull-type diaphragm clutch | ||
|
DriⅤng type |
8×4 |
||
|
Steering mechanism |
Integral power steering |
||
|
brake |
Pneumatic dual-circuits |
||
|
Tire specifications |
11.00R20 18PR |
||
|
Model |
QL2310U4TDHY |
||
|
Engine parameters |
Model |
6UZ1-TCG61， |
|
|
Type |
Water-cooling turbocharged fuel injection |
||
|
Cylinder |
6Cyliner inline |
||
